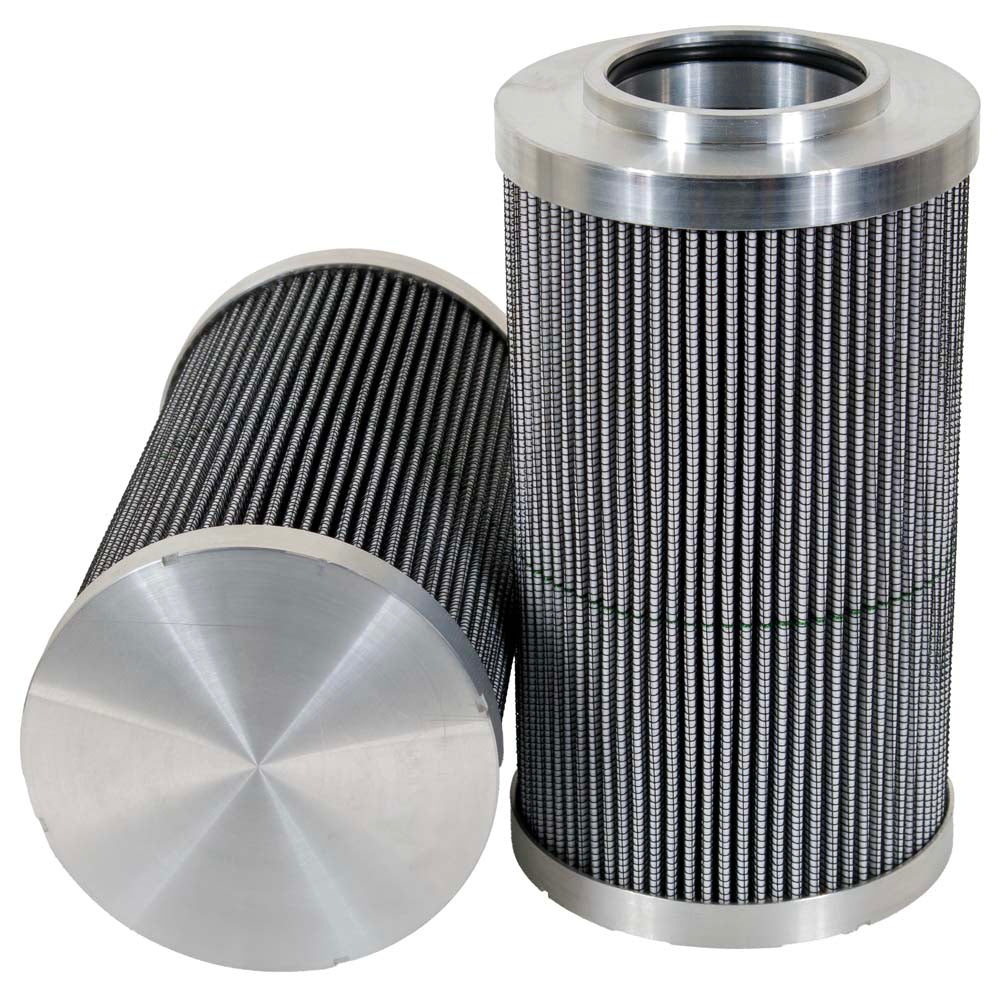

MicroFit® UltraGen III MFHLP30417 Pressure Filter | Replaces the Eppensteiner 9330LAH10XLA000MSO300

Brand: MicroFit
Price Match
€76,95
1.76 kg
0.0015 m³
United Kingdom
8421.99.90
0.81 kg
0.0015 m³
Italy
8421.99.90
0.64 kg
0.0015 m³
France
8421.99.90
0.0015 m³
Germany
8421.99.90
0.51 kg
0.0021 m³
8421.29.80.90
0.0015 m³
8421.99.90
0.68 kg
0.0023 m³
8421.23.00
0.0015 m³
8421.99.90
Shipping Terms

Description

Genuine MICROFIT® UltraGen III MFHLP30417 Pressure Filter. Engineered and manufactured in Great Britain the MFHLP30417 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 162.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

Genuine MICROFIT® UltraGen III MFHLP30417 Pressure Filter. Engineered and manufactured in Great Britain the MFHLP30417 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Eppensteiner Brand Logo

Same Fit-Form & Function

As the Genuine Eppensteiner 9330LAH10XLA000MSO300

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 162.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
