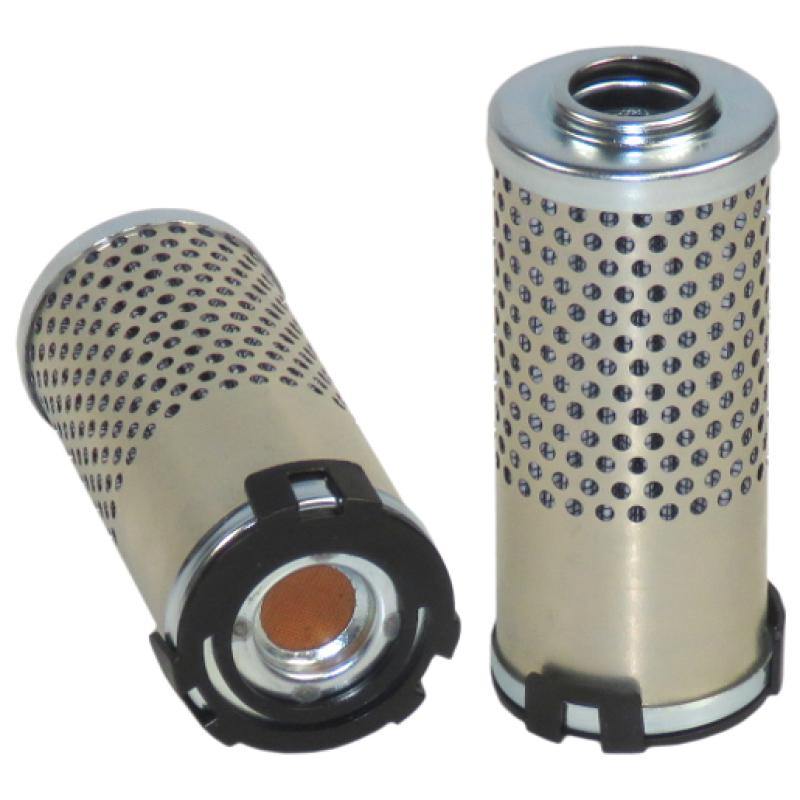

Specification

StyleReturn Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 46.0 mm
Inner Diameter 20.5 mm
Length 79.0 mm
Bypass Pressure 2.5 BAR
MediaGlass Fiber
Flow DirectionOUT-IN
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Sofima Brand Logo

Same Fit-Form & Function

As the Genuine Sofima RA102FD1

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 46.0 mm
Inner Diameter 20.5 mm
Length 79.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

2.5 BAR
Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
